dmlfw_mat_double.h File Reference

Core double precision matrix types and utilities. More...

#include <dmlfw_types.h>

Include dependency graph for dmlfw_mat_double.h:

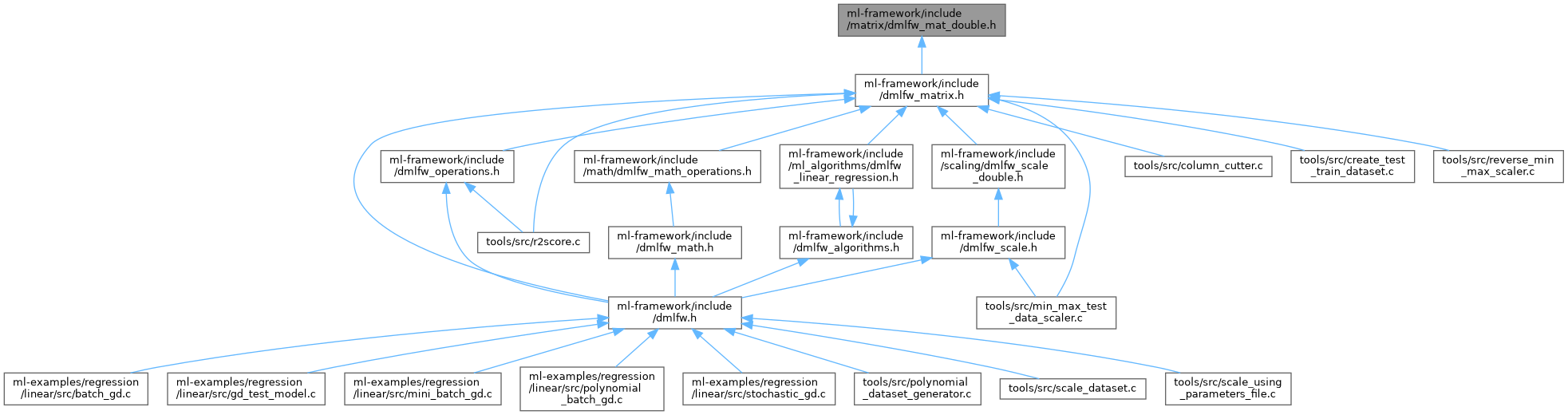

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

typedef struct __dmlfw_mat_double	dmlfw_mat_double
	Opaque structure representing a double precision matrix.
dmlfw_mat_double *	dmlfw_mat_double_clone (dmlfw_mat_double *matrix_to_clone, dmlfw_mat_double *new_matrix)
	Clones a matrix into a new or existing matrix container.
void	dmlfw_mat_double_copy (dmlfw_mat_double *target, dmlfw_mat_double *source, index_t target_row_index, index_t target_column_index, index_t source_from_row_index, index_t source_from_column_index, index_t source_to_row_index, index_t source_to_column_index)
	Copies a submatrix from source to target at specified offsets.
dmlfw_column_vec_double *	dmlfw_mat_double_create_column_vec (dmlfw_mat_double *matrix, index_t column_index, dmlfw_column_vec_double *vector)
	Creates or fills a column vector from the specified column of the matrix.
dmlfw_mat_double *	dmlfw_mat_double_create_identity_matrix (dimension_t rows)
	Creates an identity matrix of specified size.
dmlfw_mat_double *	dmlfw_mat_double_create_new (dimension_t rows, dimension_t columns)
	Creates a new matrix with specified rows and columns.
dmlfw_mat_double *	dmlfw_mat_double_create_new_random_filled (dimension_t rows, dimension_t columns, double min, double max, dmlfw_mat_double *new_matrix)
	Creates a matrix filled with random values within [min, max].
void	dmlfw_mat_double_destroy (dmlfw_mat_double *matrix)
	Destroys a matrix and frees all associated memory.
void	dmlfw_mat_double_fill (dmlfw_mat_double *matrix, index_t from_row_index, index_t from_column_index, index_t to_row_index, index_t to_column_index, double value)
	Fills a subregion of the matrix with the specified value.
dmlfw_mat_double *	dmlfw_mat_double_from_csv (const char *csv_file_name, dmlfw_mat_double *matrix, dmlfw_row_vec_string **header)
	Loads a matrix and header from a CSV file.
double	dmlfw_mat_double_get (dmlfw_mat_double *matrix, index_t row, index_t column)
	Returns value at a specific matrix position.
dmlfw_mat_double *	dmlfw_mat_double_get_block_from_csv (const char *csv_file_name, dmlfw_mat_double *matrix, uint64_t from_row, uint64_t how_many_rows, long *pos)
	Loads a block of rows from a CSV file into a matrix.
void	dmlfw_mat_double_get_dimensions (dmlfw_mat_double *matrix, dimension_t *rows, dimension_t *columns)
	Retrieves the matrix dimensions.
double	dmlfw_mat_double_get_maximum (dmlfw_mat_double *matrix, index_t start_row_index, index_t start_column_index, index_t end_row_index, index_t end_column_index)
	Finds the maximum value in a specified submatrix region.
double	dmlfw_mat_double_get_mean (dmlfw_mat_double *matrix, index_t start_row_index, index_t start_column_index, index_t end_row_index, index_t end_column_index)
	Computes the mean of elements in a specified submatrix region.
double	dmlfw_mat_double_get_minimum (dmlfw_mat_double *matrix, index_t start_row_index, index_t start_column_index, index_t end_row_index, index_t end_column_index)
	Finds the minimum value in a specified submatrix region.
double	dmlfw_mat_double_get_standard_deviation (dmlfw_mat_double *matrix, index_t start_row_index, index_t start_column_index, index_t end_row_index, index_t end_column_index)
	Calculates the standard deviation of elements in a specified submatrix region.
void	dmlfw_mat_double_get_training_testing_data (const char *csv_file_name, dmlfw_mat_double **training_data_matrix, dmlfw_mat_double **testing_data_matrix, uint8_t testing_data_percentage)
	Splits data from a CSV file into training and testing matrices.
void	dmlfw_mat_double_insert_columns (dmlfw_mat_double **matrix, index_t at_index, dimension_t number_of_columns)
	Inserts columns into a matrix at a specified index.
dmlfw_mat_double *	dmlfw_mat_double_inverse (dmlfw_mat_double *matrix_to_inverse, dmlfw_mat_double *new_matrix)
	Computes the inverse of a square matrix using Gaussian elimination.
void	dmlfw_mat_double_left_shift (dmlfw_mat_double *matrix, dimension_t how_many_places_to_shift)
	Left shifts matrix elements by specified number of places.
void	dmlfw_mat_double_reshape (dmlfw_mat_double **matrix_to_reshape, dimension_t new_rows_count, dimension_t new_columns_count)
	Reshapes a matrix to new row and column counts.
void	dmlfw_mat_double_right_shift (dmlfw_mat_double *matrix, dimension_t how_many_places_to_shift)
	Right shifts matrix elements by specified number of places.
void	dmlfw_mat_double_set (dmlfw_mat_double *matrix, index_t row, index_t column, double value)
	Sets value at a specific matrix position.
dmlfw_mat_double *	dmlfw_mat_double_shuffle (dmlfw_mat_double *matrix, uint8_t how_many_times_to_shuffle, dmlfw_mat_double *shuffled_matrix)
	Returns a shuffled version of the matrix, shuffling rows specified times.
void	dmlfw_mat_double_to_csv (dmlfw_mat_double *matrix, const char *csv_file_name, dmlfw_row_vec_string *header)
	Saves a matrix and its header to a CSV file.
dmlfw_mat_double *	dmlfw_mat_double_transpose (dmlfw_mat_double *matrix, dmlfw_mat_double *transposed_matrix)
	Transposes a matrix.
void	dmlfw_mat_double_truncate (dmlfw_mat_double **matrix, index_t from_row_index, index_t from_column_index, index_t to_row_index, index_t to_column_index)
	Truncates the specified matrix to a subregion.

Detailed Description

Core double precision matrix types and utilities.

Version

1.0

Date

2025-09-25

This header defines opaque matrix structures for double precision floating-point data. It provides APIs for creation, destruction, element access and mutation, CSV import/export, matrix operations such as transpose, reshape, shuffle, block extraction, and statistical functions.

Error Handling:

All functions report errors via the centralized error API. Use dmlfw_error() to check for errors after calls. dmlfw_get_error_string() and dmlfw_get_debug_string() provide error information.

Ownership:

Functions returning new matrix pointers transfer ownership to the caller, who is responsible for freeing with dmlfw_mat_double_destroy().

Indexing Notes:

• All indices are zero-based, except for functions like dmlfw_mat_double_get_block_from_csv() which may use one-based indexing (documented explicitly in their parameter list).
• Range parameters (start/end) are inclusive unless explicitly stated otherwise.

Typedef Documentation

dmlfw_mat_double

typedef struct __dmlfw_mat_double dmlfw_mat_double

Opaque structure representing a double precision matrix.

The internal representation is hidden. Use the provided API functions to create, manipulate, and destroy instances.

Function Documentation

dmlfw_mat_double_clone()

dmlfw_mat_double * dmlfw_mat_double_clone	(	dmlfw_mat_double *	matrix_to_clone,
		dmlfw_mat_double *	new_matrix
	)

Clones a matrix into a new or existing matrix container.

Parameters

matrix_to_clone	[in] Source matrix (must not be NULL).
new_matrix	[in,out] Optional existing matrix to reuse, or NULL.

Returns

Pointer to cloned matrix, or NULL on error.

See also

dmlfw_mat_double_destroy

Note

Caller must free returned matrix if newly allocated.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *clone = dmlfw_mat_double_clone(mat, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error cloning matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(clone);

dmlfw_mat_double_copy()

void dmlfw_mat_double_copy	(	dmlfw_mat_double *	target,
		dmlfw_mat_double *	source,
		index_t	target_row_index,
		index_t	target_column_index,
		index_t	source_from_row_index,
		index_t	source_from_column_index,
		index_t	source_to_row_index,
		index_t	source_to_column_index
	)

Copies a submatrix from source to target at specified offsets.

Parameters

target	[in,out] Destination matrix (non-NULL).
source	[in] Source matrix (non-NULL).
target_row_index	[in] row index to start copy at in target
target_column_index	[in] column index to start copy at in target
source_from_row_index	[in] start row index in source
source_from_column_index	[in] start column index in source
source_to_row_index	[in] end row index in source
source_to_column_index	[in] end column index in source

See also

dmlfw_mat_double_clone

Usage example:

dmlfw_mat_double_copy(dest, src, 0, 0, 1, 1, 3, 3);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error copying matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_create_column_vec()

dmlfw_column_vec_double * dmlfw_mat_double_create_column_vec	(	dmlfw_mat_double *	matrix,
		index_t	column_index,
		dmlfw_column_vec_double *	vector
	)

Creates or fills a column vector from the specified column of the matrix.

Parameters

matrix	[in] Matrix (must not be NULL).
column_index	[in] index of the column to extract.
vector	[in,out] Optional existing column vector to reuse, or NULL.

Returns

Pointer to the column vector containing the specified column, or NULL if an error occurs.

See also

dmlfw_mat_double_create_new

Note

If vector is NULL, a new one is allocated and ownership is transferred to caller.

Check errors with the centralized error API after the call.

Usage example:

char err[512], dbg[512];
dmlfw_column_vec_double *col_vec = dmlfw_mat_double_create_column_vec(mat, 2, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error creating column vector: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_column_vec_double_destroy(col_vec);

dmlfw_mat_double_create_identity_matrix()

dmlfw_mat_double * dmlfw_mat_double_create_identity_matrix

(

dimension_t

rows

)

Creates an identity matrix of specified size.

Parameters

rows	[in] Number of rows and columns (square matrix).

Returns

Pointer to identity matrix, or NULL on error.

See also

dmlfw_mat_double_destroy

Note

Caller must free the matrix with dmlfw_mat_double_destroy().

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *identity = dmlfw_mat_double_create_identity_matrix(4);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error creating identity matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(identity);

dmlfw_mat_double_create_new()

dmlfw_mat_double * dmlfw_mat_double_create_new	(	dimension_t	rows,
		dimension_t	columns
	)

Creates a new matrix with specified rows and columns.

Parameters

rows	[in] Number of rows (must be > 0).
columns	[in] Number of columns (must be > 0).

Returns

Pointer to new matrix, or NULL if allocation fails or invalid args.

See also

dmlfw_mat_double_destroy

Note

Caller must free with dmlfw_mat_double_destroy().

Check errors with the centralized error API.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *mat = dmlfw_mat_double_create_new(5, 4);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Create failed: %s\nDebug: %s\n", err, dbg);
    return EXIT_FAILURE;
}

Examples

example_dmlfw_error.c, and example_dmlfw_mat_double.c.

dmlfw_mat_double_create_new_random_filled()

dmlfw_mat_double * dmlfw_mat_double_create_new_random_filled	(	dimension_t	rows,
		dimension_t	columns,
		double	min,
		double	max,
		dmlfw_mat_double *	new_matrix
	)

Creates a matrix filled with random values within [min, max].

Parameters

rows	[in] Number of rows (must be > 0).
columns	[in] Number of columns (must be > 0).
min	[in] Minimum random value.
max	[in] Maximum random value.
new_matrix	[in,out] Optional existing matrix to reuse, or NULL.

Returns

Pointer to created matrix, or NULL on error.

See also

dmlfw_mat_double_destroy

Note

Caller must free returned matrix.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *rand_mat = dmlfw_mat_double_create_new_random_filled(5, 5, 0.0, 1.0, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error creating random matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(rand_mat);

dmlfw_mat_double_destroy()

void dmlfw_mat_double_destroy

(

dmlfw_mat_double *

matrix

)

Destroys a matrix and frees all associated memory.

Parameters

matrix

[in] Pointer to matrix, or NULL (no-op).

See also

dmlfw_mat_double_create_new

Usage example:

dmlfw_mat_double_destroy(mat);

Examples

example_dmlfw_error.c, example_dmlfw_mat_double.c, and example_dmlfw_scale_double.c.

dmlfw_mat_double_fill()

void dmlfw_mat_double_fill	(	dmlfw_mat_double *	matrix,
		index_t	from_row_index,
		index_t	from_column_index,
		index_t	to_row_index,
		index_t	to_column_index,
		double	value
	)

Fills a subregion of the matrix with the specified value.

Parameters

matrix	[in,out] Matrix to fill (must not be NULL).
from_row_index	[in] starting row index of the subregion
from_column_index	[in] starting column index of the subregion
to_row_index	[in] ending row index of the subregion
to_column_index	[in] ending column index of the subregion
value	[in] The value to fill in the specified subregion

See also

dmlfw_mat_double_get

dmlfw_mat_double_set

Note

Indices are clamped if out-of-bounds.

Error status is set if ranges are invalid or matrix is NULL.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_fill(mat, 1, 1, 3, 3, 5.5);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error filling matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_from_csv()

dmlfw_mat_double * dmlfw_mat_double_from_csv	(	const char *	csv_file_name,
		dmlfw_mat_double *	matrix,
		dmlfw_row_vec_string **	header
	)

Loads a matrix and header from a CSV file.

Parameters

csv_file_name	[in] CSV file path (non-NULL).
matrix	[in,out] Optional matrix to reuse; if NULL a new matrix is allocated.
header	[out] Pointer to receive newly allocated header (non-NULL).

Returns

Pointer to loaded matrix, or NULL on error.

Note

Caller must free returned matrix and header.

Header is always a row vector.

Check errors with the centralized error API.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *mat = NULL;
dmlfw_row_vec_string *header = NULL;
mat = dmlfw_mat_double_from_csv("data.csv", NULL, &header);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Load failed: %s\nDebug: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(mat);
dmlfw_vec_string_destroy(header);

dmlfw_mat_double_get()

double dmlfw_mat_double_get	(	dmlfw_mat_double *	matrix,
		index_t	row,
		index_t	column
	)

Returns value at a specific matrix position.

Parameters

matrix	[in] Matrix (non-NULL).
row	[in] row index.
column	[in] column index.

Returns

Value at position or 0.0 if error.

See also

dmlfw_mat_double_set

Note

Checks bounds and errors.

Usage example:

double val = dmlfw_mat_double_get(mat, 1, 2);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Failed to retrieve value from (1,2) : %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
printf("Value: %lf\n", val);

Examples

example_dmlfw_mat_double.c.

dmlfw_mat_double_get_block_from_csv()

dmlfw_mat_double * dmlfw_mat_double_get_block_from_csv	(	const char *	csv_file_name,
		dmlfw_mat_double *	matrix,
		uint64_t	from_row,
		uint64_t	how_many_rows,
		long *	pos
	)

Loads a block of rows from a CSV file into a matrix.

Parameters

csv_file_name	[in] Path to the CSV file (non-null).
matrix	[in,out] Optional matrix to reuse, or NULL.
from_row	[in] Start row (1-based, first row is 1)
how_many_rows	[in] Number of rows to load.
pos	[in,out] Optional file position pointer for resuming read, pass NULL if not used.

Returns

Pointer to loaded matrix, or NULL on error.

See also

dmlfw_mat_double_from_csv

Note

Caller frees returned matrix.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *block = dmlfw_mat_double_get_block_from_csv("data.csv", NULL, 1, 10, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error loading CSV block: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(block);

dmlfw_mat_double_get_dimensions()

void dmlfw_mat_double_get_dimensions	(	dmlfw_mat_double *	matrix,
		dimension_t *	rows,
		dimension_t *	columns
	)

Retrieves the matrix dimensions.

Parameters

matrix	[in] Matrix (non-NULL).
rows	[out] Pointer to store row count (non-NULL).
columns	[out] Pointer to store column count (non-NULL).

See also

dmlfw_mat_double_create_new

Usage example:

dimension_t rows, cols;
dmlfw_mat_double_get_dimensions(mat, &rows, &cols);

dmlfw_mat_double_get_maximum()

double dmlfw_mat_double_get_maximum	(	dmlfw_mat_double *	matrix,
		index_t	start_row_index,
		index_t	start_column_index,
		index_t	end_row_index,
		index_t	end_column_index
	)

Finds the maximum value in a specified submatrix region.

Parameters

matrix	[in] Matrix (must not be NULL).
start_row_index	[in] starting row
start_column_index	[in] starting column
end_row_index	[in] ending row
end_column_index	[in] ending column

Returns

Maximum value in the submatrix or 0.0 if error occurred.

Note

Indices are clamped to valid ranges.

Check errors using the centralized error API.

• See also

  dmlfw_mat_double_get_minimum

  Usage example:

  char err[512], dbg[512];
  double max_val = dmlfw_mat_double_get_maximum(mat, 0, 0, 4, 4);
  if (dmlfw_error()) {
      dmlfw_get_error_string(err, sizeof(err));
      dmlfw_get_debug_string(dbg, sizeof(dbg));
      printf("Error finding maximum: %s\nDebug info: %s\n", err, dbg);
      return EXIT_FAILURE;
  }
  else {
      printf("Maximum value: %lf\n", max_val);
  }

dmlfw_mat_double_get_mean()

double dmlfw_mat_double_get_mean	(	dmlfw_mat_double *	matrix,
		index_t	start_row_index,
		index_t	start_column_index,
		index_t	end_row_index,
		index_t	end_column_index
	)

Computes the mean of elements in a specified submatrix region.

Parameters

matrix	[in] Matrix (must not be NULL).
start_row_index	[in] starting row
start_column_index	[in] starting column
end_row_index	[in] ending row
end_column_index	[in] ending column

Returns

Mean value or 0.0 if an error occurred.

See also

dmlfw_mat_double_get_standard_deviation

Note

Indices are clamped to valid ranges.

Check errors using the centralized error API.

Usage example:

char err[512], dbg[512];
double mean_val = dmlfw_mat_double_get_mean(mat, 0, 0, 4, 4);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error computing mean: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
else {
    printf("Mean value: %lf\n", mean_val);
}

dmlfw_mat_double_get_minimum()

double dmlfw_mat_double_get_minimum	(	dmlfw_mat_double *	matrix,
		index_t	start_row_index,
		index_t	start_column_index,
		index_t	end_row_index,
		index_t	end_column_index
	)

Finds the minimum value in a specified submatrix region.

Parameters

matrix	[in] Matrix (must not be NULL).
start_row_index	[in] starting row
start_column_index	[in] starting column
end_row_index	[in] ending row
end_column_index	[in] ending column

Returns

Minimum value or 0.0 if an error occurred.

• See also

  dmlfw_mat_double_get_maximum

  Note

  Indices are clamped.

  Check errors with the centralized error API after the call.

  Usage example:

  char err[512], dbg[512];
  double min_val = dmlfw_mat_double_get_minimum(mat, 0, 0, 4, 4);
  if (dmlfw_error()) {
      dmlfw_get_error_string(err, sizeof(err));
      dmlfw_get_debug_string(dbg, sizeof(dbg));
      printf("Error finding minimum: %s\nDebug info: %s\n", err, dbg);
      return EXIT_FAILURE;
  }

dmlfw_mat_double_get_standard_deviation()

double dmlfw_mat_double_get_standard_deviation	(	dmlfw_mat_double *	matrix,
		index_t	start_row_index,
		index_t	start_column_index,
		index_t	end_row_index,
		index_t	end_column_index
	)

Calculates the standard deviation of elements in a specified submatrix region.

Parameters

matrix	[in] Matrix (must not be NULL).
start_row_index	[in] starting row
start_column_index	[in] starting column
end_row_index	[in] ending row
end_column_index	[in] ending column

Returns

Standard deviation or 0.0 if an error occurred.

See also

dmlfw_mat_double_get_mean

Note

Indices are clamped.

Check errors using the centralized error API.

Usage example:

char err[512], dbg[512];
double std_dev = dmlfw_mat_double_get_standard_deviation(mat, 0, 0, 4, 4);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error computing standard deviation: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
else {
    printf("Standard deviation: %lf\n", std_dev);
}

dmlfw_mat_double_get_training_testing_data()

void dmlfw_mat_double_get_training_testing_data	(	const char *	csv_file_name,
		dmlfw_mat_double **	training_data_matrix,
		dmlfw_mat_double **	testing_data_matrix,
		uint8_t	testing_data_percentage
	)

Splits data from a CSV file into training and testing matrices.

Parameters

csv_file_name	[in] Path to CSV file (must not be NULL).
training_data_matrix	[out] Pointer to hold training data matrix.
testing_data_matrix	[out] Pointer to hold testing data matrix.
testing_data_percentage	[in] Percentage (0-100) of data for testing.

See also

dmlfw_mat_double_from_csv

Note

Caller is responsible for destroying returned matrices.

Check errors using the centralized error API.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *train = NULL;
dmlfw_mat_double *test = NULL;
dmlfw_mat_double_get_training_testing_data("dataset.csv", &train, &test, 20);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error splitting dataset: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
else {
    // use train and test...
}
dmlfw_mat_double_destroy(train);
dmlfw_mat_double_destroy(test);

dmlfw_mat_double_insert_columns()

void dmlfw_mat_double_insert_columns	(	dmlfw_mat_double **	matrix,
		index_t	at_index,
		dimension_t	number_of_columns
	)

Inserts columns into a matrix at a specified index.

Parameters

matrix	[in,out] Pointer to matrix pointer to modify.
at_index	[in] column index at which to insert
number_of_columns	[in] Number of columns to insert

See also

dmlfw_mat_double_clone

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_insert_columns(&mat, 2, 3);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error inserting columns: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_inverse()

dmlfw_mat_double * dmlfw_mat_double_inverse	(	dmlfw_mat_double *	matrix_to_inverse,
		dmlfw_mat_double *	new_matrix
	)

Computes the inverse of a square matrix using Gaussian elimination.

Parameters

matrix_to_inverse	[in] Matrix to invert (must not be NULL, square).
new_matrix	[in,out] Optional container to store inverse, or NULL to allocate.

Returns

Pointer to inverse matrix, or NULL if error.

See also

dmlfw_mat_double_create_new

dmlfw_mat_double_clone

Note

Caller must free returned matrix.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *inverse = dmlfw_mat_double_inverse(mat, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error computing inverse: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(inverse);

dmlfw_mat_double_left_shift()

void dmlfw_mat_double_left_shift	(	dmlfw_mat_double *	matrix,
		dimension_t	how_many_places_to_shift
	)

Left shifts matrix elements by specified number of places.

Parameters

matrix	[in,out] Matrix to shift (must not be NULL).
how_many_places_to_shift	[in] Number of positions to shift left (must be > 0).

See also

dmlfw_mat_double_right_shift

Note

Vacated positions are set to zero.

Error is set if invalid parameters.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_left_shift(mat, 2);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in left shift: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_reshape()

void dmlfw_mat_double_reshape	(	dmlfw_mat_double **	matrix_to_reshape,
		dimension_t	new_rows_count,
		dimension_t	new_columns_count
	)

Reshapes a matrix to new row and column counts.

Parameters

matrix_to_reshape	[in,out] Pointer to matrix pointer to reshape.
new_rows_count	[in] New number of rows (must be > 0).
new_columns_count	[in] New number of columns (must be > 0).

See also

dmlfw_mat_double_clone

Note

Original matrix is destroyed and replaced on success.

Sets error and NULLs pointer if failure occurs.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_reshape(&mat, 10, 10);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error reshaping matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_right_shift()

void dmlfw_mat_double_right_shift	(	dmlfw_mat_double *	matrix,
		dimension_t	how_many_places_to_shift
	)

Right shifts matrix elements by specified number of places.

Parameters

matrix	[in,out] Matrix to shift (must not be NULL).
how_many_places_to_shift	[in] Number of positions to shift right (must be > 0).

See also

dmlfw_mat_double_left_shift

Note

Vacated positions are set to zero.

Error is set if invalid parameters.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_right_shift(mat, 2);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in right shift: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_set()

void dmlfw_mat_double_set	(	dmlfw_mat_double *	matrix,
		index_t	row,
		index_t	column,
		double	value
	)

Sets value at a specific matrix position.

Parameters

matrix	[in,out] Matrix (non-NULL).
row	[in] row index.
column	[in] column index.
value	[in] Value to set.

See also

dmlfw_mat_double_get

Note

Checks bounds and errors.

Usage example:

dmlfw_mat_double_set(mat, 1, 2, 3.14);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Failed to set value at (1,2) : %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

Examples

example_dmlfw_mat_double.c.

dmlfw_mat_double_shuffle()

dmlfw_mat_double * dmlfw_mat_double_shuffle	(	dmlfw_mat_double *	matrix,
		uint8_t	how_many_times_to_shuffle,
		dmlfw_mat_double *	shuffled_matrix
	)

Returns a shuffled version of the matrix, shuffling rows specified times.

Parameters

matrix	[in] Source matrix (must not be NULL).
how_many_times_to_shuffle	[in] Number of shuffle iterations (non-zero).
shuffled_matrix	[in,out] Optional matrix to receive shuffled output, or NULL.

Returns

Pointer to matrix containing shuffled rows, or NULL if an error occurs.

See also

dmlfw_mat_double_clone

Note

If shuffled_matrix is NULL, a new matrix is allocated and ownership is transferred.

Check errors with the centralized error API after the call.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *shuffled = dmlfw_mat_double_shuffle(mat, 10, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error shuffling matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(shuffled);

dmlfw_mat_double_to_csv()

void dmlfw_mat_double_to_csv	(	dmlfw_mat_double *	matrix,
		const char *	csv_file_name,
		dmlfw_row_vec_string *	header
	)

Saves a matrix and its header to a CSV file.

Parameters

matrix	[in] Matrix to save (must not be NULL).
csv_file_name	[in] Output CSV file path (must not be NULL).
header	[in] Row vector header (must not be NULL).

See also

dmlfw_mat_double_from_csv

Note

File is overwritten if it exists.

Header row vector size must exactly match the number of matrix columns.

Check errors with the centralized error API after the call.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_to_csv(mat, "output.csv", header);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error exporting matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}

dmlfw_mat_double_transpose()

dmlfw_mat_double * dmlfw_mat_double_transpose	(	dmlfw_mat_double *	matrix,
		dmlfw_mat_double *	transposed_matrix
	)

Transposes a matrix.

Parameters

matrix	[in] Matrix to transpose (must not be NULL).
transposed_matrix	[in,out] Optional matrix to receive transpose, or NULL.

Returns

Pointer to the transposed matrix or NULL on error.

See also

dmlfw_mat_double_clone

Note

Caller owns newly created matrices.

Check errors with the centralized error API after the call.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *transposed = dmlfw_mat_double_transpose(mat, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error transposing matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(transposed);

dmlfw_mat_double_truncate()

void dmlfw_mat_double_truncate	(	dmlfw_mat_double **	matrix,
		index_t	from_row_index,
		index_t	from_column_index,
		index_t	to_row_index,
		index_t	to_column_index
	)

Truncates the specified matrix to a subregion.

Parameters

matrix	[in,out] Pointer to matrix pointer to modify.
from_row_index	[in] starting row index
from_column_index	[in] starting column index
to_row_index	[in] ending row index
to_column_index	[in] ending column index

See also

dmlfw_mat_double_clone

Usage example:

char err[512], dbg[512];
dmlfw_mat_double_truncate(&mat, 0, 0, 3, 3);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error truncating matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
