Core mathematical vector and matrix functions. More...

#include <dmlfw_vector.h>
#include <dmlfw_matrix.h>

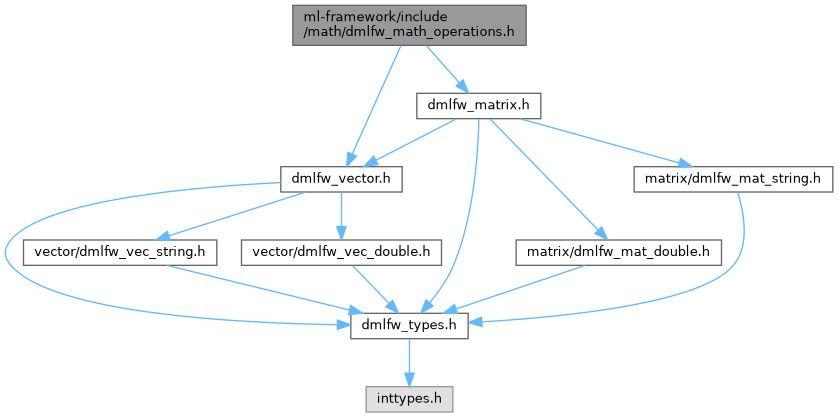

Include dependency graph for dmlfw_math_operations.h:

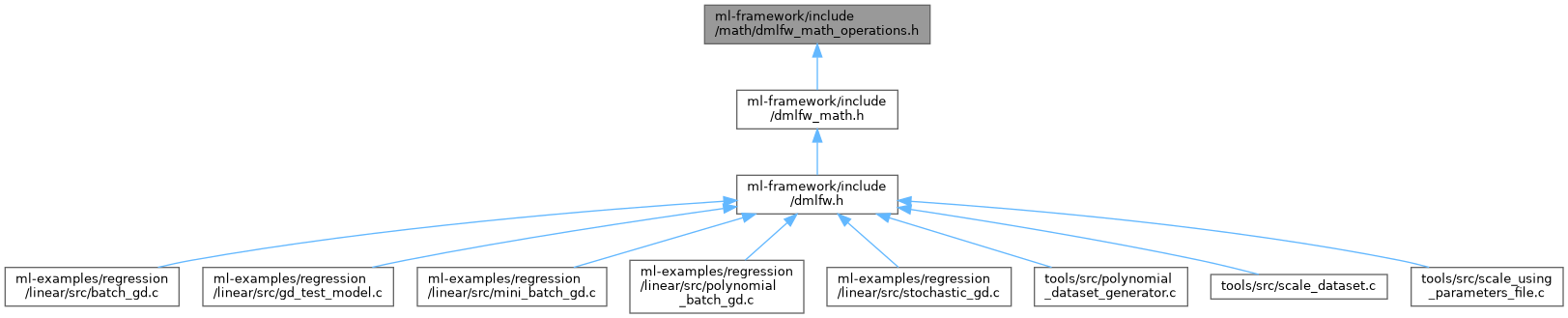

This graph shows which files directly or indirectly include this file:

Functions

dmlfw_column_vec_double *	dmlfw_column_vec_double_log (dmlfw_column_vec_double vector, dmlfw_column_vec_double new_vector)
	Applies natural logarithm element-wise to column vector.

dmlfw_column_vec_double *	dmlfw_column_vec_double_sigmoid (dmlfw_column_vec_double vector, dmlfw_column_vec_double new_vector)
	Applies sigmoid function element-wise to column vector.

double	dmlfw_column_vec_double_sum (dmlfw_column_vec_double *vector)
	Computes sum of all values in column vector.

dmlfw_mat_double *	dmlfw_mat_double_sigmoid (dmlfw_mat_double matrix, dmlfw_mat_double new_matrix)
	Applies sigmoid function element-wise to a matrix.

Detailed Description

Core mathematical vector and matrix functions.

Version: 1.0

Date: 2025-09-25

This module provides functions for common mathematical transformations (sigmoid, log) and reductions (sum) on double precision vectors and matrices, supporting ML and numeric data workflows.

Error Handling:

All functions use a centralized error API. After calls, check dmlfw_error() and access full details via dmlfw_get_error_string() and dmlfw_get_debug_string().

Ownership:

Functions that allocate new containers (vectors/matrices) transfer ownership to caller. Returned vectors/matrices must be destroyed with the appropriate API function.

Function Documentation

◆ dmlfw_column_vec_double_log()

dmlfw_column_vec_double * dmlfw_column_vec_double_log	(	dmlfw_column_vec_double *	vector,
		dmlfw_column_vec_double *	new_vector
	)

Applies natural logarithm element-wise to column vector.

If new_vector is NULL, allocates a new container; otherwise, fills provided container. Input and output sizes must match if container is reused.

Parameters

vector	[in] Source column vector (non-NULL).
new_vector	[in,out] Optional result vector. If NULL, allocated.

Returns: Pointer to result vector or NULL on error.

Usage example:

char err[512], dbg[512];
dmlfw_column_vec_double *logv = dmlfw_column_vec_double_log(vec, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in log: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_column_vec_double_destroy(logv);

◆ dmlfw_column_vec_double_sigmoid()

dmlfw_column_vec_double * dmlfw_column_vec_double_sigmoid	(	dmlfw_column_vec_double *	vector,
		dmlfw_column_vec_double *	new_vector
	)

Applies sigmoid function element-wise to column vector.

If new_vector is NULL, allocates a result container; otherwise, fills provided container. Input and output sizes must match if container is reused.

Parameters

vector	[in] Source column vector (non-NULL).
new_vector	[in,out] Optional result vector to fill. If NULL, allocated.

Returns: Pointer to result vector, or NULL on error.

Usage example:

char err[512], dbg[512];
dmlfw_column_vec_double *sig = dmlfw_column_vec_double_sigmoid(vec, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in sigmoid: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_column_vec_double_destroy(sig);

Examples: example_dmlfw_math_operations.c.

◆ dmlfw_column_vec_double_sum()

double dmlfw_column_vec_double_sum ( dmlfw_column_vec_double * vector )

Computes sum of all values in column vector.

Parameters

vector [in] Source vector.

Returns: Sum or 0.0 on error.

Usage example:

char err[512], dbg[512];
double total = dmlfw_column_vec_double_sum(vec);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in sum: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
printf("Sum: %lf\n", total);

Examples: example_dmlfw_math_operations.c.

◆ dmlfw_mat_double_sigmoid()

dmlfw_mat_double * dmlfw_mat_double_sigmoid	(	dmlfw_mat_double *	matrix,
		dmlfw_mat_double *	new_matrix
	)

Applies sigmoid function element-wise to a matrix.

If new_matrix is NULL, allocates a new matrix; otherwise, fills provided container. Dimensions must match if container is reused.

Parameters

matrix	[in] Source matrix (non-NULL).
new_matrix	[in,out] Optional result matrix. If NULL, allocated.

Returns: Pointer to result matrix or NULL on error.

Usage example:

char err[512], dbg[512];
dmlfw_mat_double *sig_mat = dmlfw_mat_double_sigmoid(mat, NULL);
if (dmlfw_error()) {
    dmlfw_get_error_string(err, sizeof(err));
    dmlfw_get_debug_string(dbg, sizeof(dbg));
    printf("Error in sigmoid matrix: %s\nDebug info: %s\n", err, dbg);
    return EXIT_FAILURE;
}
dmlfw_mat_double_destroy(sig_mat);
